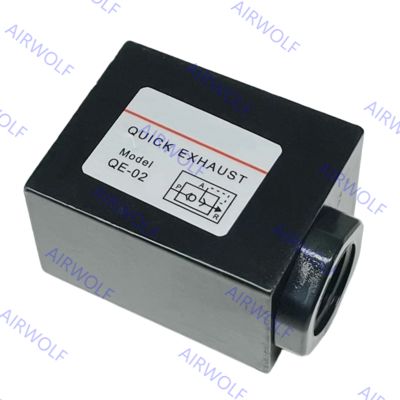

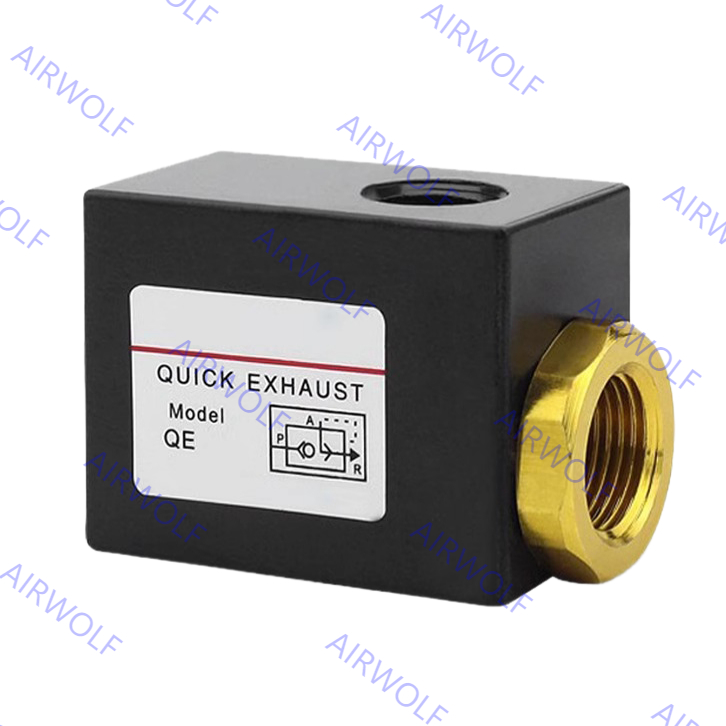

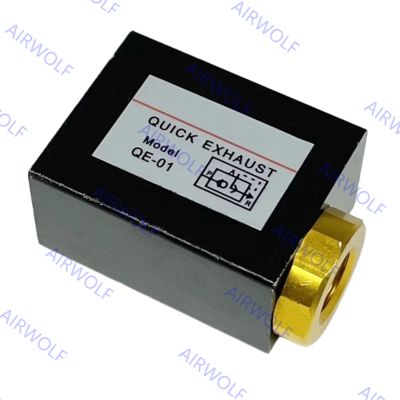

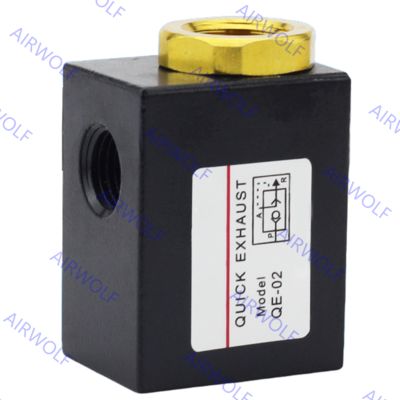

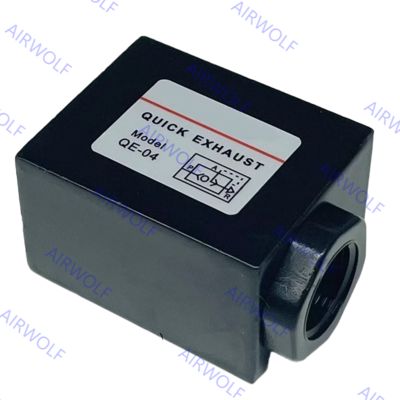

QE-01, QE-02, QE-03, QE-04 Sunrise QE Series Quick Exhaust Valve 1/8", 1/4", 3/8", 1/2"

QE-01, QE-02, QE-03, QE-04 Sunrise QE Series Quick Exhaust Valve 1/8", 1/4", 3/8", 1/2"

商品の詳細:
起源の場所: 中国
ブランド名: Sunrise, AIRWOLF or OEM
モデル番号: QE-01、QE-02、QE-03、QE-04
お支払配送条件:
最小注文数量: 1個
価格: 2-3USD
パッケージの詳細: 箱、カートン、パレット、ビニール袋
受渡し時間: 1〜7営業日
支払条件: T/T、ウェスタンユニオン、ペイパル
供給の能力: 週に1000個
連絡先
詳細製品概要
材料: アルミニウム合金 使用圧力: 0~0.8Mpa
作業温度範囲: –5~+60℃ ポートサイズ: 1/8"、1/4"、3/8"、1/2"
関数: 速度制御 作動媒体: 40μmでろ過した乾燥圧縮空気
ハイライト:

Sunrise QE Series quick exhaust valve

,

Aluminum alloy air flow control valve

,

Quick exhaust valve with speed control

QE-01, QE-02, QE-03, QE-04 Sunrise QE Series Quick Exhaust Valve 1/8", 1/4", 3/8", 1/2"

Order Codes:
Type Port Size Positions
QE-01 1/8" 3/2 way
QE-02 1/4" 3/2 way
QE-03 3/8" 3/2 way
QE-04 1/2" 3/2 way
Symbol:

QE-01, QE-02, QE-03, QE-04 Sunrise QE Series Quick Exhaust Valve 1/8", 1/4", 3/8", 1/2"

Specification:
Model QE-01 QE-02 QE-03 QE-04
Working Media Clean air
Port Size G1/8 G1/4 G3/8 G1/2
Max.Working Pressure 0.8MPa
Proof Pressure 1.0MPa
Working Temperature Range -5~60℃
Material Body Aluminum Alloy
Seal NBR
Dimension:

QE-01, QE-02, QE-03, QE-04 Sunrise QE Series Quick Exhaust Valve 1/8", 1/4", 3/8", 1/2"

Quality Standards:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

Samples:

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale service:

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Competitive Advantage:
Our product features: Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 3) 1 year warranty
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment 5) Loading inspection, and send loading photos before shipment.
