| Liandong Uグウ17-2#のShengyuanの道1#のJiangkouの通り、奉化市地区、ニンポー都市、浙江省、中国 | airwolf@flyautomatic.com |

|
| 起源の場所: | 日本,中国 |
| ブランド名: | CONVUM, MYOUTOKU, AIRWOLF or OEM |

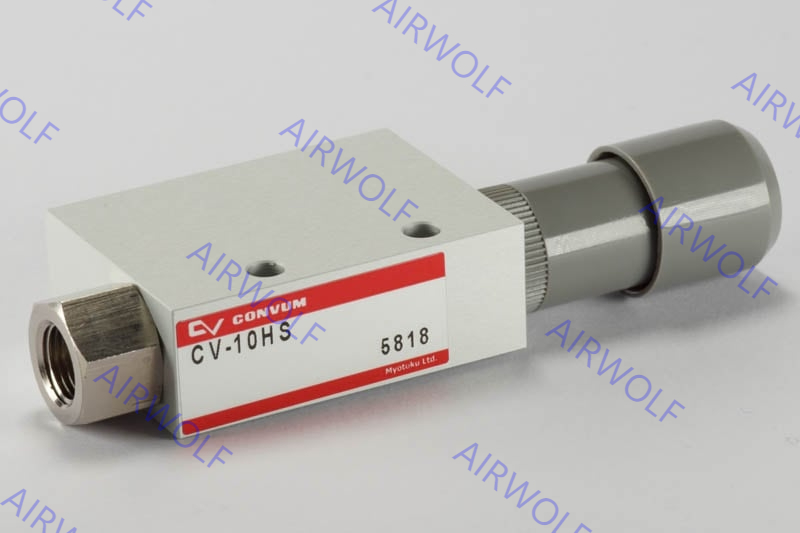

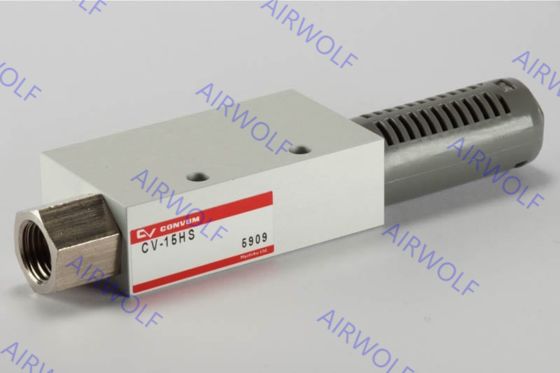

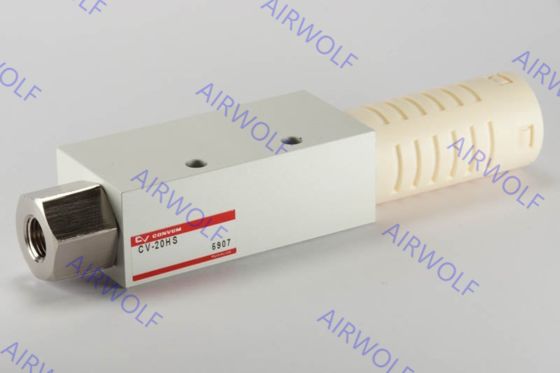

| モデル番号: | CV-10HS、CV-15HS、CV-20HS |
| 最小注文数量: | 1ピース |
|---|---|
| 価格: | 2-3USD |
| パッケージの詳細: | 箱、カートン、パレット、ビニール袋 |
| 受渡し時間: | 1〜7営業日 |
| 支払条件: | T/T、ウェスタンユニオン、ペイパル |
| 供給の能力: | 週に1000個 |
| 項目コード: | CV-10HS、CV-15HS、CV-20HS | タイプ: | 圧力スイッチなし |
|---|---|---|---|
| 材料: | アルミニウム合金 | 使用圧力: | 0.1~0.6Mpa |
| 作業温度範囲: | 0～60℃、凍結なきこと | 関数: | 真空を生成する |
| ハイライト: | CV Series vacuum ejectors with 0.1~0.6MPa,Pneumatic vacuum ejectors for 0～60℃ range,Vacuum ejectors with generate vacuum function |
||
The CONVUM CV Series Vacuum Ejector is a pioneering product line from the Japanese company CONVUM, a brand name derived from "Compressor" and "Vacuum" that has become synonymous with high-quality venturi-based vacuum generation since the series' launch in 1972. These ejectors operate on the Venturi effect, using compressed air forced through a narrow nozzle to create a high-velocity stream that generates a vacuum at the suction port, enabling the handling of various materials without any moving parts. The series includes multiple models (e.g., CV-10HS, CV-15HS, CV-20HS) differentiated by nozzle diameters (e.g., 1.0mm, 1.5mm, 2.0mm), which correspond to their performance characteristics, such as vacuum pressure (up to -92 kPa) and air consumption. Renowned for their compact, lightweight aluminum body with a brass nozzle and integrated silencer, they are designed for durability, low noise, and long service life across automotive, packaging, and electronics automation industries.
| Model | Nozzle size(Φmm) | Compatible Silencer |
|---|---|---|
| CV-10HS | 1 | MSS-01 |
| CV-15HS | 1.5 | MSM-01 |
| CV-20HS | 2 | MSL-02 |
| CV-25HS | 2.5 | MS6-01 |
| CV-30HS | 3 | MS6-01 |
| CV-10HSCK | 1 | MSS-01 |
| CV-15HSCK | 1.5 | MSM-01 |
| CV-20HSCK | 2 | MSL-02 |
| CV-25HSCK | 2.5 | MS6-01 |
| Description Model number | Unit | CV-10 | CV-15 | CV-20 | CV-25 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HS | LS | HR | HS | LS | HR | HS | LS | HR | HS | LS | HS | ||
| Nozzle size | mm | 1.0 | 1.5 | 2.0 | 2.5 | ||||||||
| Fluid | Non-lubricated compressed air | ||||||||||||
| Ambient temperature | °C | 0~60(No Freezing) | |||||||||||
| Operating pressure range | MPa | 0.1~0.6 | |||||||||||
| Rated pressure | MPa | 0.5 | 0.35 | 0.5 | 0.35 | 0.5 | 0.35 | 0.5 | |||||
| Maximum vacuum pressure | kPa | -92 | -57 | -91 | -92 | -57 | -91 | -92 | -57 | -91 | -92 | -57 | -92 |
| Suction flow | L/min(ANR) | 27 | 36 | 25 | 63 | 95 | 54 | 110 | 155 | 88 | 160 | 250 | 225 |
| Air consumption | L/min(ANR) | 44 | 100 | 180 | 265 | 385 | |||||||
| Description Model number | Unit | CV-CK | |
|---|---|---|---|
| Fluid | Air | ||
| Operating pressure range | kPa | -20～-53 | |
| Withstand pressure | MPa | 0.5 | |
| Ambient temperature range | ℃ | 0～60 (No freezing) | |
| Ambient humidity range | %RH | 35～85 (No condensation) | |
| Switch type | Reed switch, normally opened (N.O) | ||
| Rated voltage | V | AC125, 250 | |
| Maximum load current | AC125 | A | 5 |
| AC250 | A | 3 | |
| Repeatability | kPa | ±5.3 | |
| Hysteresis | kPa | 4.0～13.3 | |
| Cable length | mm | 100 | |
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
| Our product features: | Our Services Guarantee: |
| 1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
| 2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging | 3) 1 year warranty |
| 4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
| 5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
