| 起源の場所: | 台湾、中国、中国 |
| ブランド名: | CJAC, AIRWOLF or OEM |
| モデル番号: | AC2530-2、AC2540-2、AC2550-2、AC2580-2、AC3660-2 |
| 最小注文数量: | 1個 |
|---|---|
| 価格: | 4-11USD |
| パッケージの詳細: | 箱、カートン、パレット、ビニール袋 |
| 受渡し時間: | 1〜7営業日 |
| 支払条件: | T/T、ウェスタンユニオン、ペイパル |
| 供給の能力: | 週に1000個 |
| 項目コード: | AC2530-2、AC2540-2、AC2550-2、AC2580-2、AC3660-2 | 外管材: | AISI1215およびSTKM11A酸化黒、ニッケルメッキ処理 |
|---|---|---|---|
| ピストン棒の文書: | ハードクロムメッキ処理 | 作業温度範囲: | -10~+80℃ |
| 関数: | 衝撃保護、衝撃吸収 | 速度範囲: | 1.0〜2.5m/s |
| ハイライト: | CJAC AC Series shock absorber,Pneumatic air cylinder shock absorber,AC Series shock absorber with warranty |
||

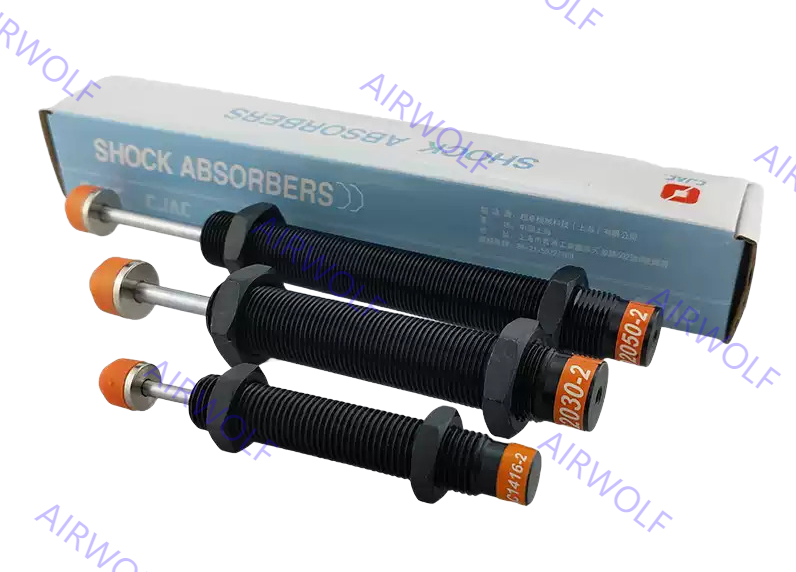

The CJAC AC Series is a line of industrial shock absorbers, or oil pressure buffers, engineered to provide automatic compensation for kinetic energy in machinery. Designed for fixed constructions, these devices utilize specialized oil holes and alignment to maintain linear deceleration across a wide range of applications, from high-speed light loads to low-speed heavy loads, without requiring manual adjustment. Key technical specifications include an operating temperature range of -10°C to +80°C and an effective impact speed range of 0.1 m/s to 5.0 m/s, depending on the model. They are constructed with durable materials such as an AISI1215 outer pipe with nitriding treatment for rust resistance and a hard chromium-plated piston rod for longevity, making them suitable for harsh industrial environments.
Order Code:
| Item Code | A(mm) | B(mm) | D(mm) | F(mm) |
|---|---|---|---|---|
| AC2530-2 | 160 | 111 | 8 | 101 |
| AC2540-2 | 214 | 127 | 8 | 117 |
| AC2550-2 | 239.5 | 170.5 | 8 | 100 |
| AC2580-2 | 336 | 237 | 8 | 100 |
| AC3660-2 | 248 | 162 | 10 | 134 |
Specifications:
| Model | AC2530-2 | AC2540-2 | AC2550-2 | AC2580-2 | AC3660-2 |
| Stroke(mm) | 30 | 40 | 50 | 80 | 60 |
| Maximum absorbed energy (Nm(Et)) | 92 | 120 | 135 | 150 | 250 |
| Absorbed energy per hour (Nm(Etc)) | 62100 | 75000 | 90000 | 120000 | 120000 |
| Maximum effective weight (Kg(Me)) | 900 | 1200 | 900 | 600 | 24000 |
| Highest impact speed (m/s(v)) | 2.0 | 2.5 | 2.5 | 2.5 | 1.0 |
| Thread | M25x1.5 | M25x1.5 *M25x2.0 | M25x1.5 *M25x2.0 | M25x1.5 *M25x2.0 | M36x1.5 |
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
| Our product features: | Our Services Guarantee: |
| 1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
| 2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging | 3) 1 year warranty |
| 4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
| 5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
