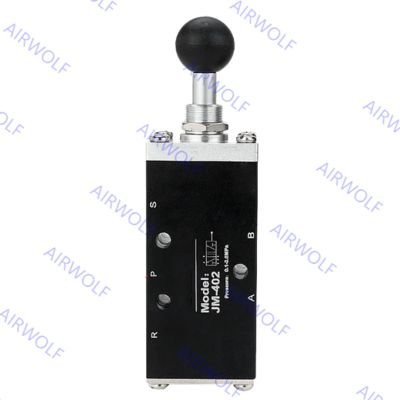

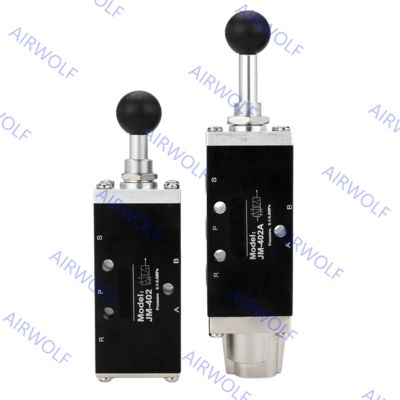

JM-402, JM-402A, JM-403, JM-403A Sunrise JM Series 5/2 way Hand Pull Valve 1/4", 3/8"

JM-402, JM-402A, JM-403, JM-403A Sunrise JM Series 5/2 way Hand Pull Valve 1/4", 3/8"

商品の詳細:
起源の場所: 台湾 中国、中国
ブランド名: Sunrise, Nielsen, AIRWOLF or OEM
証明: CE
モデル番号: JM-402、JM-402A、JM-403、JM-403A
お支払配送条件:
最小注文数量: 1ピース
価格: 7-8USD
パッケージの詳細: 箱、カートン、パレット、ビニール袋
受渡し時間: 1〜7営業日
支払条件: T/T、ウェスタンユニオン、ペイパル
供給の能力: 週に1000個
連絡先
詳細製品概要
項目コード: JM-402、JM-402A、JM-403、JM-403A 使用圧力: 0.1〜0.8mpa
作業温度範囲: -20~+70℃ ポートサイズ: 1/4"、3/8"
位置: 5/2の方法 関数: 方向制御
ハイライト:

5/2 way pneumatic hand pull valve

,

pneumatic manual valve with directional control

,

1/4 inch port pneumatic valve

JM-402, JM-402A, JM-403, JM-403A Sunrise JM Series 5/2 way Hand Pull Valve 1/4", 3/8"
The Sunrise JM Series (models JM-402, JM-402A, JM-403, JM-403A) are 5/2-way hand-pull valves, which are manually operated directional control valves used in pneumatic systems. Their core function is to direct compressed air flow to control actuators, most commonly double-acting cylinders, by shifting between two distinct positions to alternate the cylinder's extension and retraction. The "5/2" designation indicates the valve has five ports (for air supply, cylinder connections, and exhaust) and two switching positions. The manual "pull" operation provides direct and reliable control, making these valves suitable for applications where manual intervention, setup, testing, or safety override is required.
Order Codes:
Item CodePort SizePositions
JM-4021/4"5/2 way
JM-402A1/4"5/2 way
JM-4033/8"5/2 way
JM-403A3/8"5/2 way

Quality Standards:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

Samples:

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale service:

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Competitive Advantage:

Our product features:Our Services Guarantee:
1) Competitive price1) Prompt respond (Reply with 24 hours)
2) Good quality2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging3) 1 year warranty
4) Produce according to Customers’ instruction4) Photos/videos are available during production.
5) None delay shipment5) Loading inspection, and send loading photos before shipment.
