| Liandong Uグウ17-2#のShengyuanの道1#のJiangkouの通り、奉化市地区、ニンポー都市、浙江省、中国 | airwolf@flyautomatic.com |

|
| 起源の場所: | 日本,中国 |
| ブランド名: | SMC, AIRWOLF or OEM |
| モデル番号: | AQ2000-01、AQ2000-02、AQ3000-02、AQ3000-03、AQ5000-04、AQ5000-06 |
| 最小注文数量: | 1ピース |
|---|---|
| 価格: | 5-6USD |
| パッケージの詳細: | 箱、カートン、パレット、ビニール袋 |
| 受渡し時間: | 1〜7営業日 |
| 支払条件: | T/T、ウェスタンユニオン、ペイパル |
| 供給の能力: | 週に1000個 |
| 項目コード: | AQ2000-01、AQ2000-02、AQ3000-02 | 材料: | アルミダイカスト |
|---|---|---|---|
| 使用圧力: | 0.05~1.0MPa | 作業温度範囲: | –5～+60℃(凍結なきこと) |
| ポートサイズ: | 1/8"、1/4"、3/8"、1/2"、3/4" | 関数: | 速度制御 |
| ハイライト: | SMC AQ Series quick exhaust valve,aluminum die-cast air flow valve,quick exhaust valve with 1MPa pressure |
||

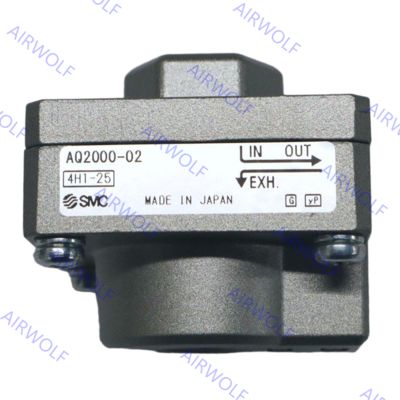

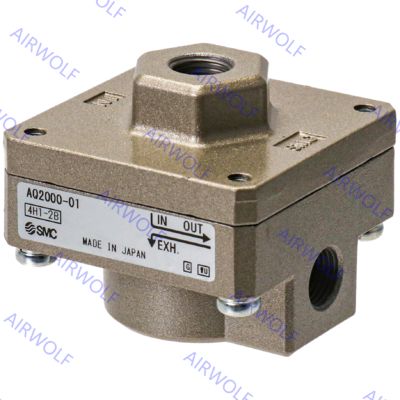

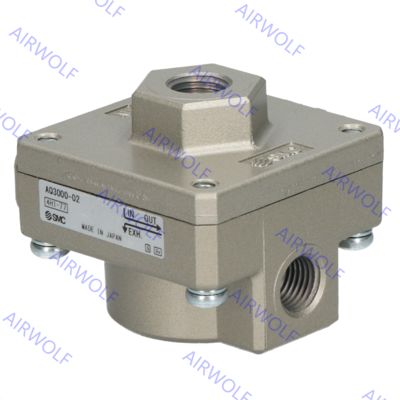

The SMC AQ Series Quick Exhaust Valve is designed to significantly increase the speed of pneumatic actuators, particularly cylinders, by providing a direct path for exhaust air. It is typically installed between the directional control valve and the cylinder. When the control valve is deactivated, the quick exhaust valve closes the inlet from the control valve and opens a direct path from the cylinder to the atmosphere, allowing air to escape rapidly without traveling back through the longer piping to the control valve. This setup is especially effective when the distance between the cylinder and the main control valve is long, as it shortens the exhaust path, reduces cycling time, and improves overall equipment efficiency. The valve operates with three ports (P: pressure supply, A: output to actuator, T: exhaust to atmosphere) and functions automatically based on pressure differentials.
| Item Code | Port Size |
|---|---|
| AQ2000-01 | 1/8" |
| AQ2000-02 | 1/4" |
| AQ3000-02 | 1/4" |
Symbol:
| Model | Port size | Operating Pressure | Ambient and fluid temperature | Sonic conductance dm3/(s-bar) |
Critical pressure ratio | Weight (g) |
||
| IN→OUT | OUT→EXH | IN→OUT | OUT→EXH | |||||
| AQ2000-01 | 1/8 | 0.05-1MPa | -5 to 60°C(No freezing) | 5 | 5 | 0.45 | 0.35 | 110 |
| AQ2000-02 | 1/4 | 7 | 8 | 105 | ||||
| AQ3000-02 | 1/4 | 8 | 8.4 | 215 | ||||
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
| Our product features: | Our Services Guarantee: |
| 1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
| 2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging | 3) 1 year warranty |
| 4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
| 5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
